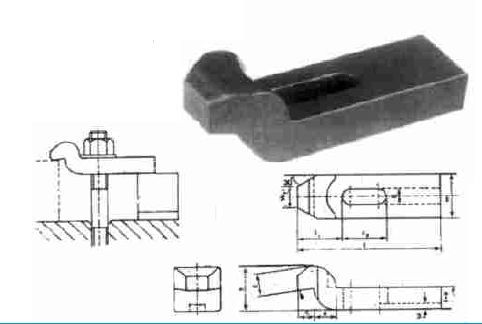

Gooseneck Clamps




Having positioned ourselves as prominent Manufacturer, Exporter & Supplier, we bring forth Gooseneck Clamps. They are manufactured using first-class raw material ensuring their optimum quality and longer life. Our team of experienced professional takes care of the designing and fabrication. We leave no stone unturned to ensure that our products match the various parameters and standards set by the industry. They are available at economical rates.



Features/Uses

  • manufactured as per IS-4279-1984.

  • Finish Black O Dized.

  • Suitable to use as an off-set clamp on most of machine.



Graph

Graph

Specifications

Item Code Model d h l l1 l2 c W W For Bolts of
11201 PHSC 10 100 11 30 100 32 32 12 30 15 M10
11202 PHSC 12 125 14 40 125 40 40 16 40 20 M12
11203 PHSC 16 160 18 50 160 49 50 20 50 25 M16
11204 PHSC 20 200 22 60 200 55 70 24 60 30 M20
11205 PHSC 24 250 26 80 250 72 80 32 70 35 M24
